Model #:
HC24PCX1
Color:
Stainless Steel

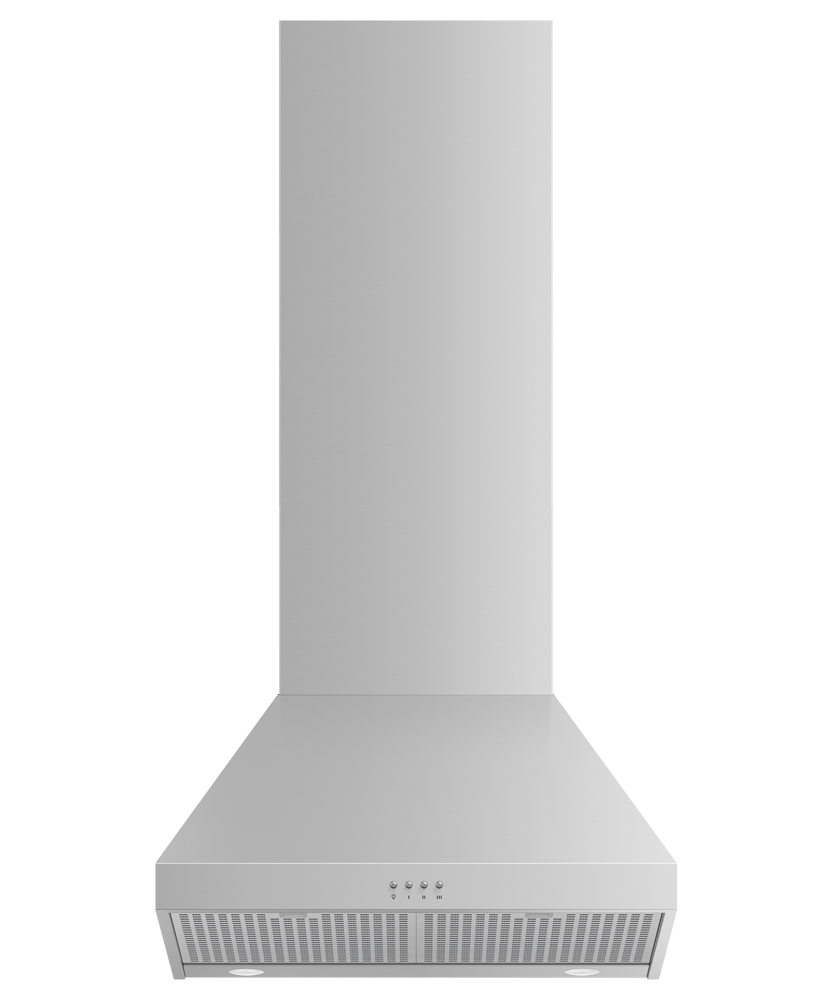

24" Series 7 Pyramid Chimney Wall Range Hood
24" Series 7 Pyramid Chimney Wall Range Hood
Dimensions
Width: 23 9/16
Height: 38 3/8 - 21 1/16
Depth: 19 11/16
Color
Stainless Steel
Features
- This wall chimney vent hood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
- Two filters effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
- This wall chimney ventilation hood's stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel's kitchen appliance family.
- Made from quality stainless steel with an excellent finish and robust product design, this range hood is both visually appealing and durable.
- The extraction rate ensures interior air is not excessively removed to the outside, while LED lighting on the range hood has been chosen for energy efficiency.
Product Description
This wall chimney range hood has contemporary styling, extracting steam, grease and cooking odors quietly and efficiently.
Rebates
Specification
| Air outlet size | |
| Air outlet size | 8" |
| Aluminium filter | |
| Aluminium filter | 792558 |
| Chimney extension | |
| Chimney extension | true |
| Depth | |
| Depth | 19 11/16" |
| Dishwasher safe filters | |
| Dishwasher safe filters | 2 |
| Ducted | |
| Ducted | Top extraction |
| Extraction type | |
| Extraction type | Surface |
| Fan speeds | |
| Fan speeds | 3 |
| Filter type | |
| Filter type | Mesh |
| Height | |
| Height | 38 3/8 - 21 1/16" |
| Light bulb | |
| Light bulb | true |
| Light type | |
| Light type | LED |
| Lighting power | |
| Lighting power | 8W |
| Maximum speed sound rating | |
| Maximum speed sound rating | 12sones |
| Number of filters | |
| Number of filters | 2 |
| Parts and labor | |
| Parts and labor | 2 years |
| Recirculation | |
| Recirculation | Optional |
| Speed 1 sound rating | |
| Speed 1 sound rating | 2sones |
| Stainless steel filter cover | |
| Stainless steel filter cover | true |
| Supply frequency | |
| Supply frequency | 60Hz |
| Supply voltage | |
| Supply voltage | 120V |
| Width | |
| Width | 23 9/16" |
Documentation
From the Manufacturer
Warranty
We offer 1 year manufacturers warranty and a 10-year major component warranty.
