Series 7, Integrated Tall Dishwasher

• Customize your dishwasher with a panel and handle matching your cabinetry, for a seamless finish in your kitchen.

• For beautifully dry dishes every time, this dishwasher features the Auto Door Open Dry function. This function automatically releases excess steam at the end of the cycle, ensuring dishes are immediately ready for use or storage. An innovative air curtain channels the steam away from the adjacent benchtop, protecting your cabinetry.

• This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.

• The Half Load modifier is perfect for washing a partial load, for faster turnaround of dishes. Sanitize provides extra protection, killing 99.9% of bacteria* in the final rinse, while the Dry+ modifier is great for plastic dishes.

• *Certified to NSF/ANSI Standard 184

• With an Energy Star Most Efficient rating, this dishwasher is recognised as among the most energy efficient models on the market. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.

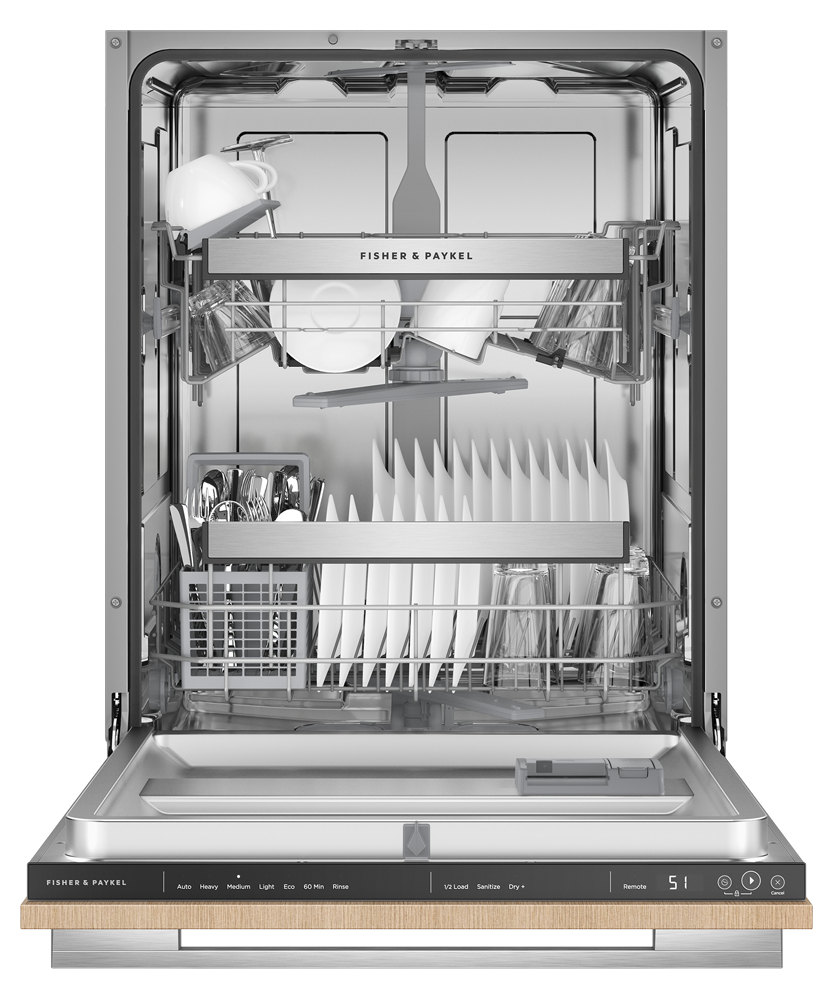

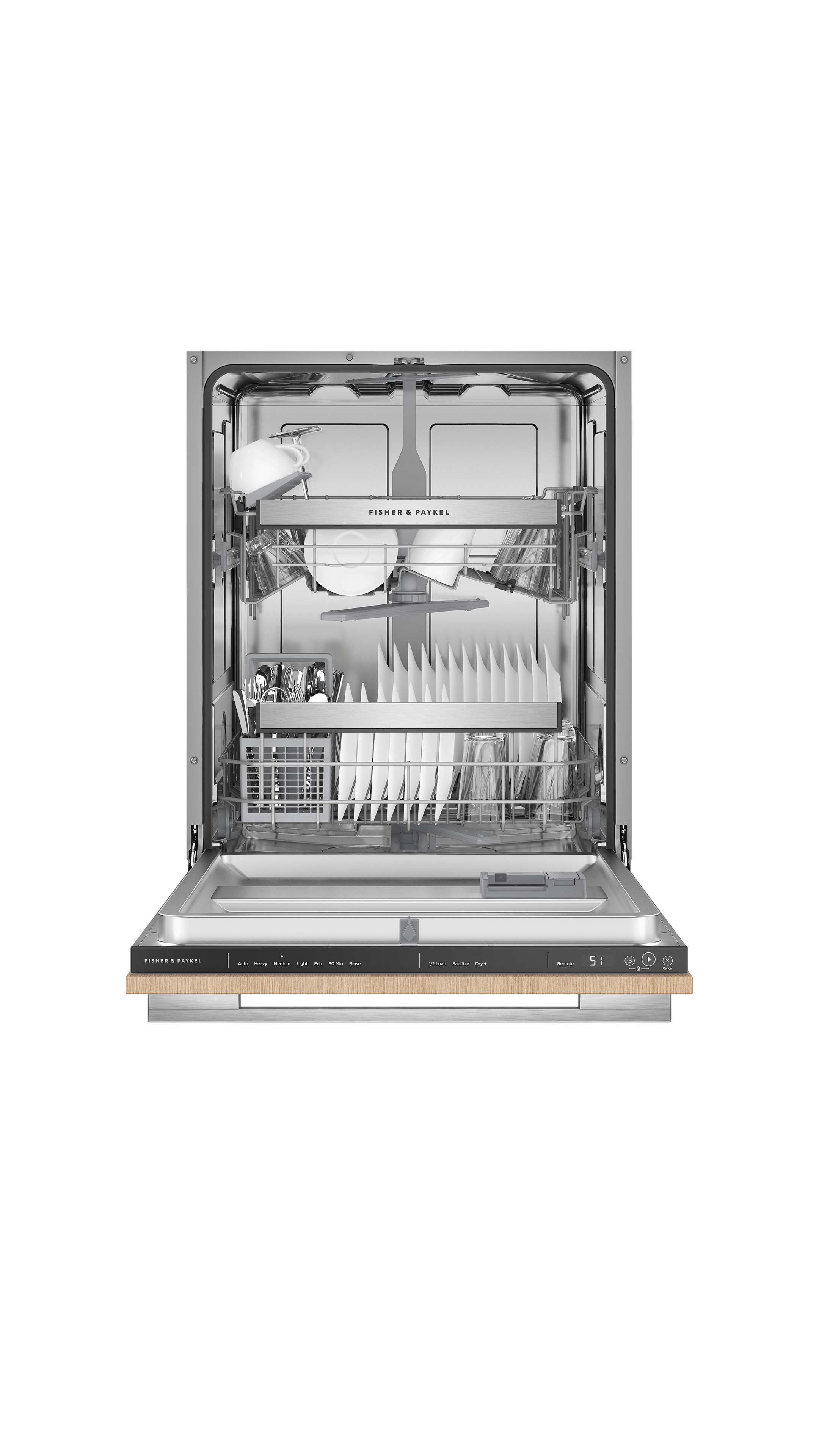

• Designed to fit 15 place settings with ease, adjustable racks help you to load and care for various items – including a height-adjustable upper basket, and foldable cup holders and tines.

60 min
60 min	true

Accommodates round plates up to (lower basket)
Accommodates round plates up to (lower basket)	12 9/16"

Accommodates round plates up to (top basket)
Accommodates round plates up to (top basket)	9 13/16"

Adjustable height, foldable cupracks
Adjustable height, foldable cupracks	true

Air curtain for bench protection
Air curtain for bench protection	true

Amperage
Amperage	10A

Auto
Auto	true

Auto Door Open Dry
Auto Door Open Dry	true

Depth
Depth	21 13/16"

Door panel stainless steel
Door panel stainless steel	ADDW24TPX

Dry +
Dry +	true

Easy lift adjustable upper basket
Easy lift adjustable upper basket	true

Eco
Eco	true

Energy rating
Energy rating	Energy star Most efficient

Energy saving delay start option of up to 12 hours
Energy saving delay start option of up to 12 hours	true

Energy usage
Energy usage	224kWh/year

Flood protection
Flood protection	true

Fold down tines
Fold down tines	true

Fold down wine racks
Fold down wine racks	true

Half load option
Half load option	true

Half-load
Half-load	true

Handle kit Classic
Handle kit Classic	AHCL-DDDW-24X

Handle kit Contemporary round, aluminium
Handle kit Contemporary round, aluminium	AHS-OBDD-60S

Handle kit Contemporary square fine, aluminium
Handle kit Contemporary square fine, aluminium	AHD5-OBDD-60SX

Handle kit Contemporary square fine, black
Handle kit Contemporary square fine, black	AHD5-OBDD-60SB

Handle kit Contemporary square, aluminium
Handle kit Contemporary square, aluminium	AHD3-OBDD-60S

Handle kit Professional round flush
Handle kit Professional round flush	AHP3-DWDD-SX

Handle kit Professional round flush, Brass off-stands
Handle kit Professional round flush, Brass off-stands	AHP3DDDW24BA

Handle kit Professional round flush, Dark Copper off-stands
Handle kit Professional round flush, Dark Copper off-stands	AHP3DDDW24DC

Heavy
Heavy	true

Height
Height	33 3/4 - 36 1/8"

Internal tub material
Internal tub material	Stainless Steel

Internal wash selector
Internal wash selector	true

Keylock
Keylock	true

Kickstrip
Kickstrip	true

Light
Light	true

Medium
Medium	true

Motor type
Motor type	Asynchronous

Noise emissions
Noise emissions	46dBA

Parts and labor
Parts and labor	Limited 2 years

Place settings
Place settings	15

Rinse
Rinse	true

Rinse aid indicator light
Rinse aid indicator light	true

Sanitize
Sanitize	true

Smart Appliance
Smart Appliance	true

Supply frequency
Supply frequency	60Hz

Supply voltage
Supply voltage	100 - 120V

ThermoDry system
ThermoDry system	true

Three-stage filtration system
Three-stage filtration system	true

Wash modifiers
Wash modifiers	3

Wash programs
Wash programs	7

Water pressure
Water pressure	30kPa - 1000 kPa

Water usage (per wash cycle)
Water usage (per wash cycle)	3.2 gal

Width
Width	23 1/2"
